Crystal label printer 60cm tear film left figure three-dimensional 3d crystal label printing machine UV DTF Printer
Specifications:
A1 crystal label printer (without nozzle and software)
Price: $8029.2
-
+
Product Introduction:
Order No.: DSA-H800W
Processing customization: Yes
Item No.: DSA-H800W
Digital printing machine type: Universal Printer
Printing Color: four-color
Applicable Object: Clothing, Apparel
Applicable Object: Leather Stamping
Applicable material: Film
Brand: DISEN
Model: DSA-H800W
printing speed: 4PASS 3m/H 6PASS 2m/H 8PASS 1.5m2/H
Printing format: 600
Thickness range of substrate: 0-20
Resolution: Standard
Overall dimension: 1880*940*740
Weight: 200
Power: 220V
Origin: Guangdong
Product Type: Brand New
After-sales service: One year warranty
Specifications: A1 crystal label printer (without nozzle and software)
Whether the source of cross-border export is exclusive: No
Category: digital printing machine
More Details
Product Fee: $0
Domestic Shipping: $0
Total: $0
Chat
Cart
Select Address

Shopping Notice

●1. You can click TRANSLATE label to get English vision of product details;

●2. If you want to make your own logo, private packages or more changes on the items please contact us by chatting, mailing or whatsapp;

CM

注:报价不含喷头和软件

Item

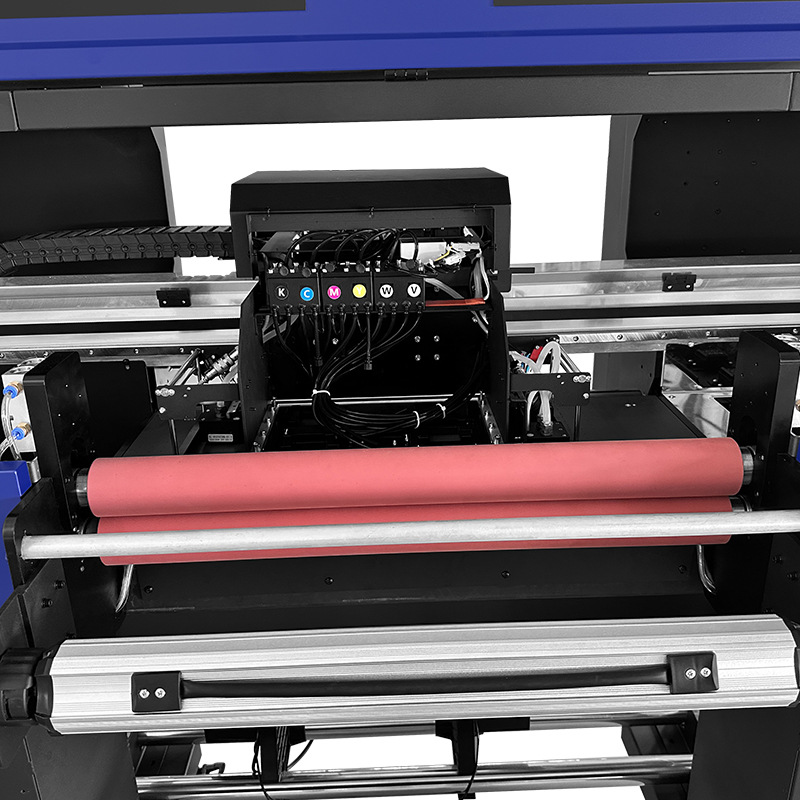

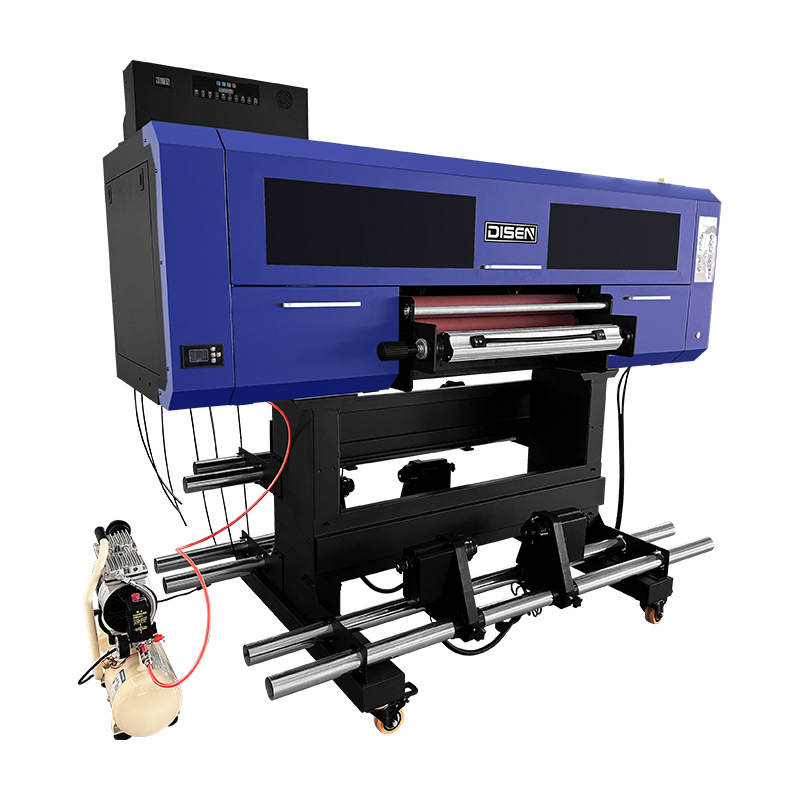

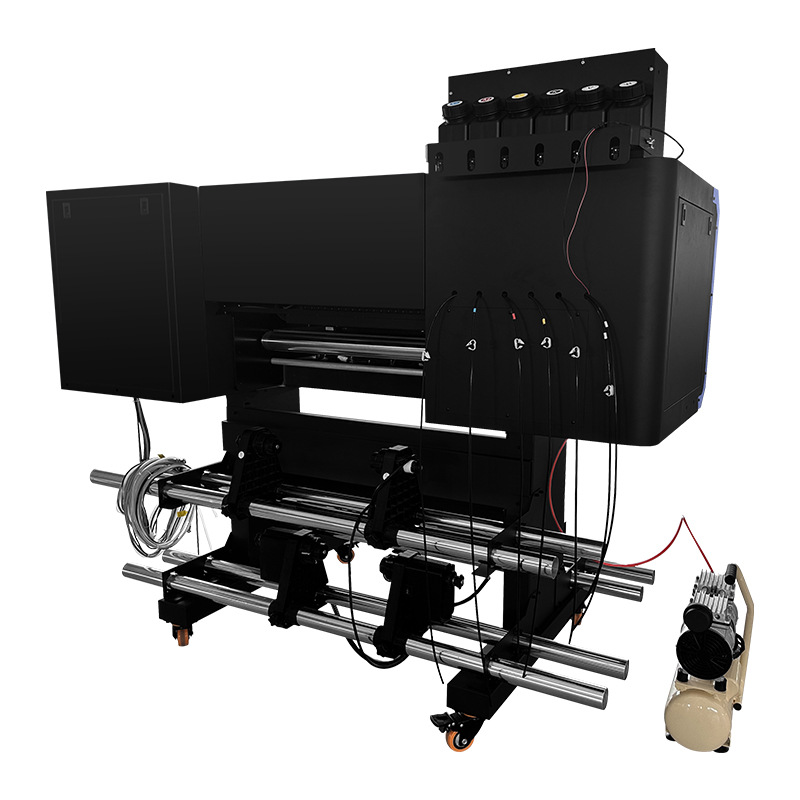

DSA-H800W UV DTF PRINTER

Print Head

I3200UV*4/3

Color

CMYK+White+V

Output Accuracy

1800dpi



Printing Speed

4pass:12 ㎡/h



6pass:8 ㎡/h



8pass:6 ㎡/h

Maximum Print Area

620mm

Ink Type/ink supply system

UV ink

Capacity

1.8L/color

Heating System

LED UV water-cooling curing system

Thickness of Material

1.5-6mm adjustable

Weight of Material

≤ 20kg

RIP software

Maitop6.0UV/Photoprint/Print factory

Power Supply

AC110V/220V±10%, 50/60+HZ  2000W ,print 200w

Operation environment

Temperature: 20-35℃Humidity: 35-70% RH (non-condensing)
Operating Noise: ≤80dB

Net & Gross Weight

180kg/200kg

Machine Dimension

1880(L)*940(w)*740(H)mm/1880*970*740

CP

undefined

undefined

undefined

undefined

20230821_140706_010
undefined

undefined
写真机底部通用07

Product Introduction:
Order No.: DSA-H800W
Processing customization: Yes
Item No.: DSA-H800W
Digital printing machine type: Universal Printer
Printing Color: four-color
Applicable Object: Clothing, Apparel
Applicable Object: Leather Stamping
Applicable material: Film
Brand: DISEN
Model: DSA-H800W
printing speed: 4PASS 3m/H 6PASS 2m/H 8PASS 1.5m2/H
Printing format: 600
Thickness range of substrate: 0-20
Resolution: Standard
Overall dimension: 1880*940*740
Weight: 200
Power: 220V
Origin: Guangdong
Product Type: Brand New
After-sales service: One year warranty
Specifications: A1 crystal label printer (without nozzle and software)
Whether the source of cross-border export is exclusive: No
Category: digital printing machine
